App Service Kubernetes Environment
In part 1 of this Using Azure Arc for Apps series, we explored Azure Arc and Azure Arc enabled Kubernetes clusters. In part 2, we deployed an App Service Kubernetes Environment into our Azure Arc enabled Kubernetes cluster. In part 3, we deployed a Function App into our Azure Arc enabled Kubernetes cluster. Azure Logic Apps will be the focus of this blog post. Just like App Services and Function Apps, Logic Apps can run in an App Service Environment, which means they can also run in an App Service Kubernetes Environment.
Tip: Part 1 and Part 2 (up until the Create an App Service resource in our App Service Kubernetes Environment section) are pre-requisites to working through this blog post, if you plan to get hands on. As noted above, an Azure Arc enabled Kubernetes cluster is a pre-requisite to deploy App Services, Azure Functions or Logic Apps to a Kubernetes cluster.
Part 3 is not a pre-requisite to working through this post.
To be clear, we won’t go through the process of setting up an App Service Kubernetes Environment again in this blog post. I’m going to make an assumption that you already have this in place. If not, please go back to part 2 to complete this. That should keep this blog post a little shorter in length!
Create a Logic App in our App Service Kubernetes Environment

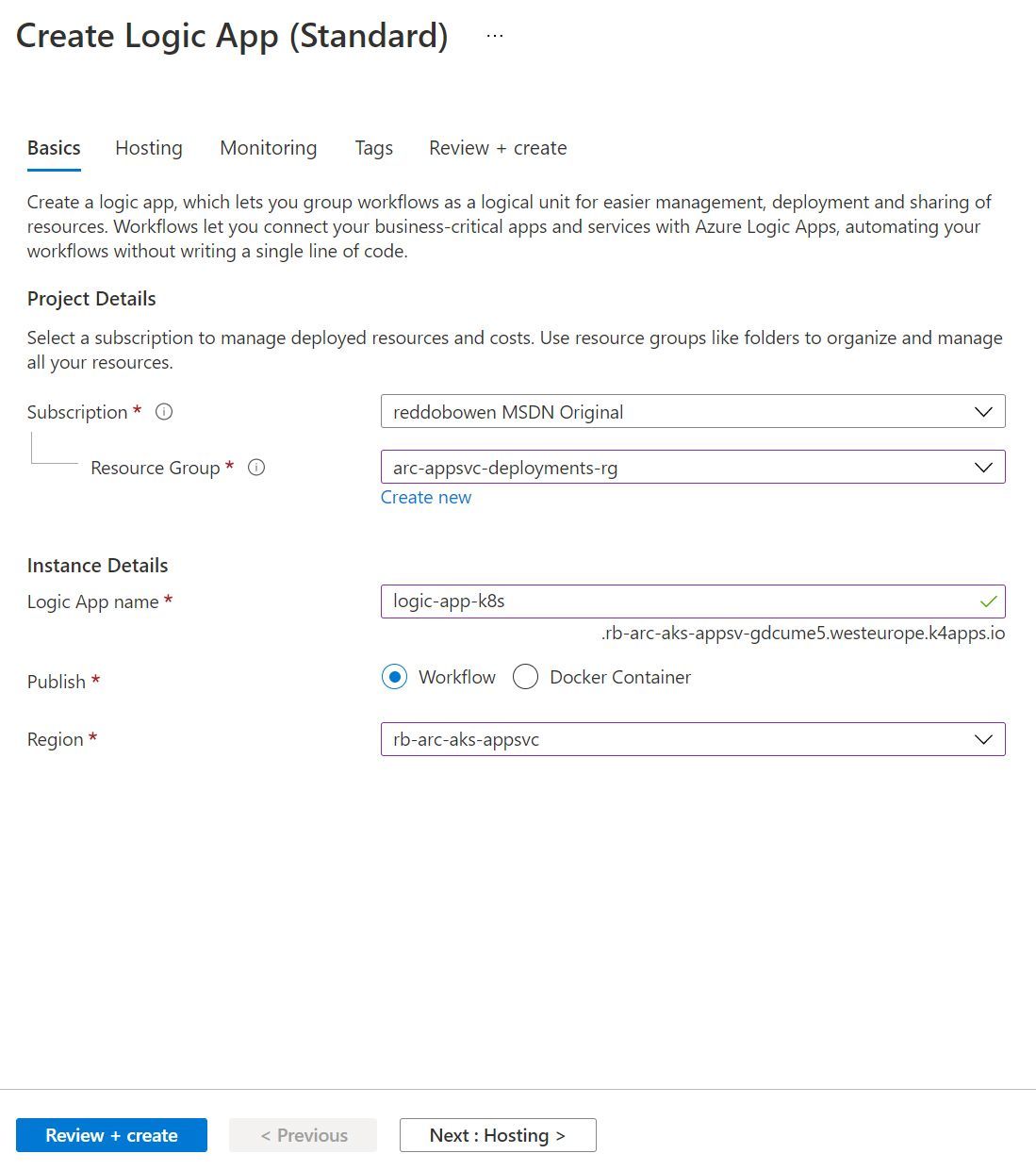

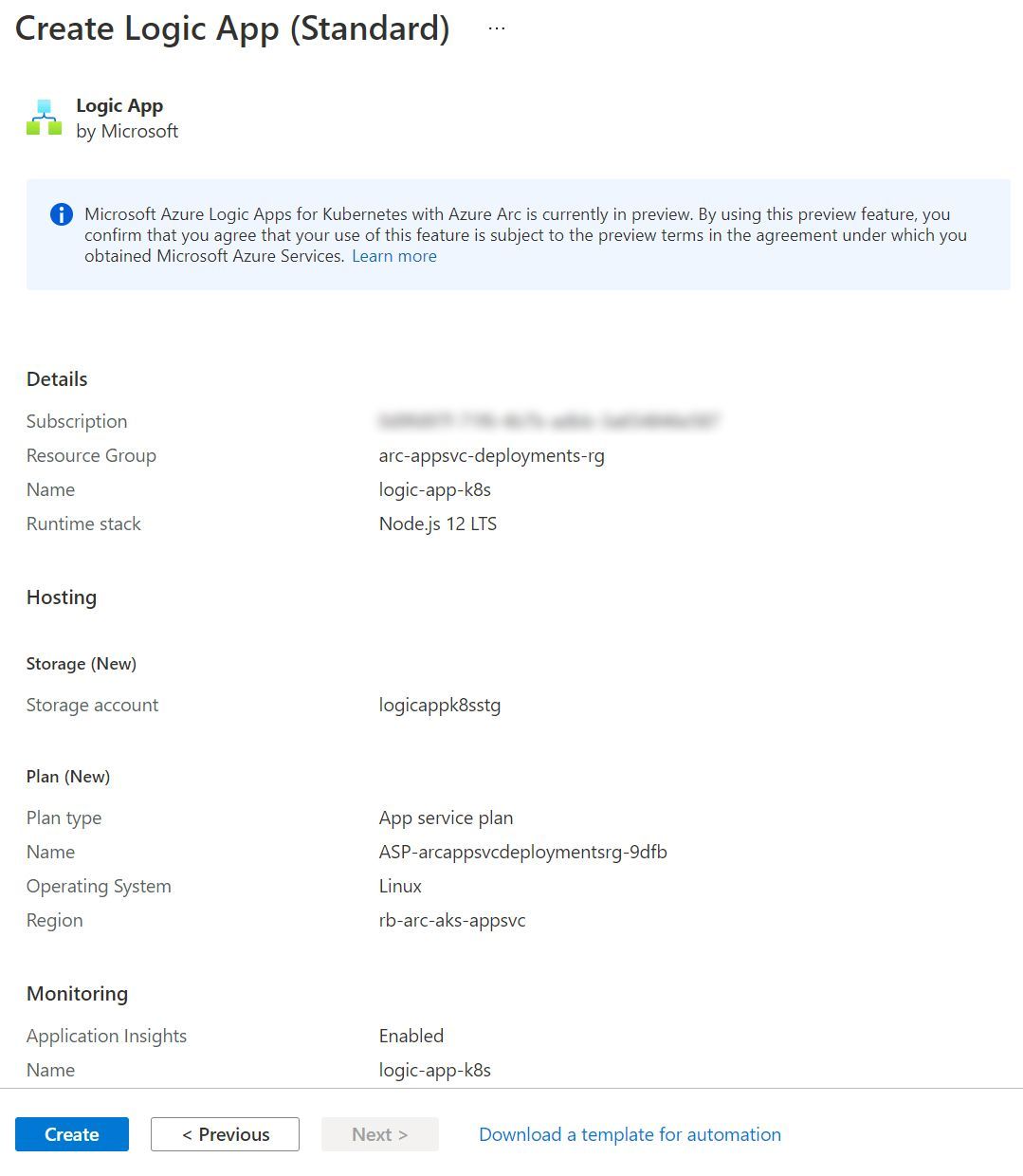

The creation experience of a Logic App in an App Service Kubernetes Environment is very similar to that for a Logic App as we are used to.
Note: Be aware that to deploy a Logic App to your App Service Kubernetes Environment, you will have to create a Logic App (Standard) resource and not a Logic App (Consumption) resource. The Logic App (Consumption) tier refers to the multi-tenanted Platform as a Service (PaaS) option.
- The instance name has a suffix of the custom domain that you will have seen in the App Service Kubernetes Environment that you created previously.
- You can publish a Logic App as a workflow or a Docker Container.
- The Custom Location item will be an option in the region dropdown. We’ll be deploying into that, so that the Logic App is created in our App Service Kubernetes Environment. On the Hosting tab, you’ll be able to configure the Azure Storage Account used by the Azure Logic App.
Azure Storage is a pre-requisite for the Azure Functions tooling. As Azure Logic Apps standard builds upon the Azure Functions Runtime, I suspect that this is why the storage account is required.
Just like in Azure Functions, my mind jumps to the fact that our Logic App may be deployed in another cloud provider or on-premises and there may be some latency to access the Azure Storage account. I may investigate this further in a separate blog post to understand the impact.
As with Azure Functions, you can configure Application Insights through the creation experience as well. We’ll leave this as the default (enabled), and progress towards the Review and Create stage.

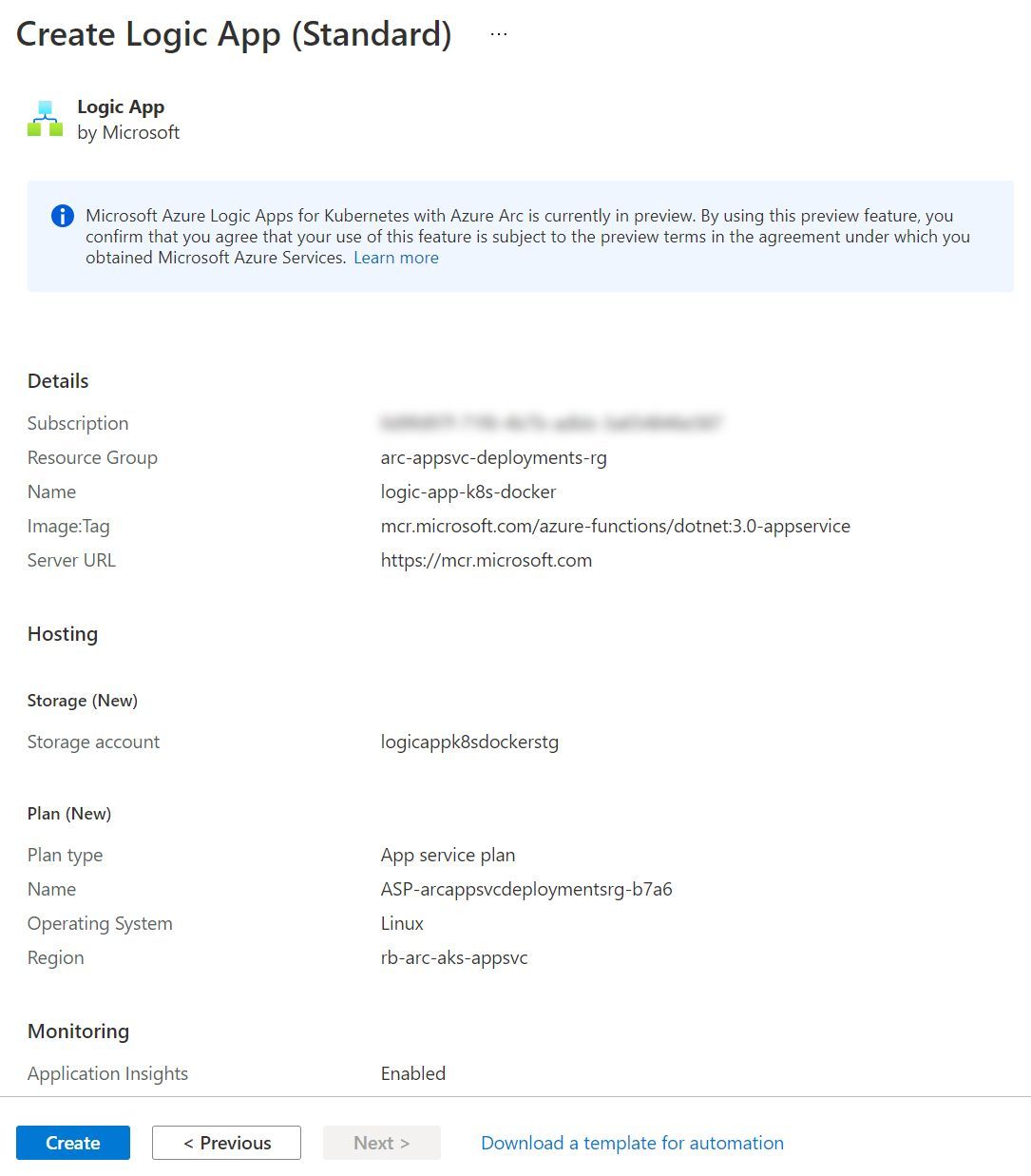

And in Parallel, I’ve also been creating a Logic App based upon a docker deployment method as well.
Logic App Workflows

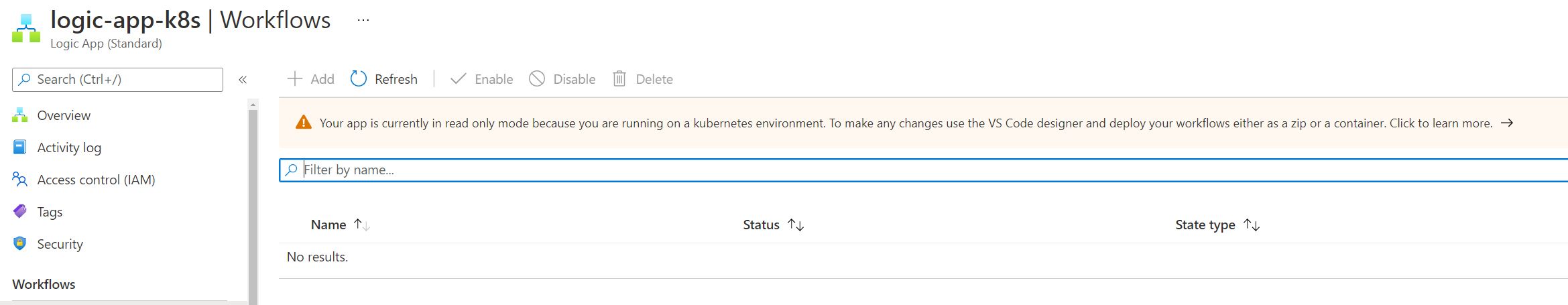

In the Azure Portal, you will see that there is a workflows item on the left hand menu of your Logic App (Standard) resource. Click on that. You’ll likely notice that there is a banner on this page.
Your app is currently in read only mode because you are running on a kubernetes environment. To make any changes use the VS Code designer and deploy your workflows either as a zip or a container.
This message will appear regardless of your chosen deployment model (i.e. Code or Docker).

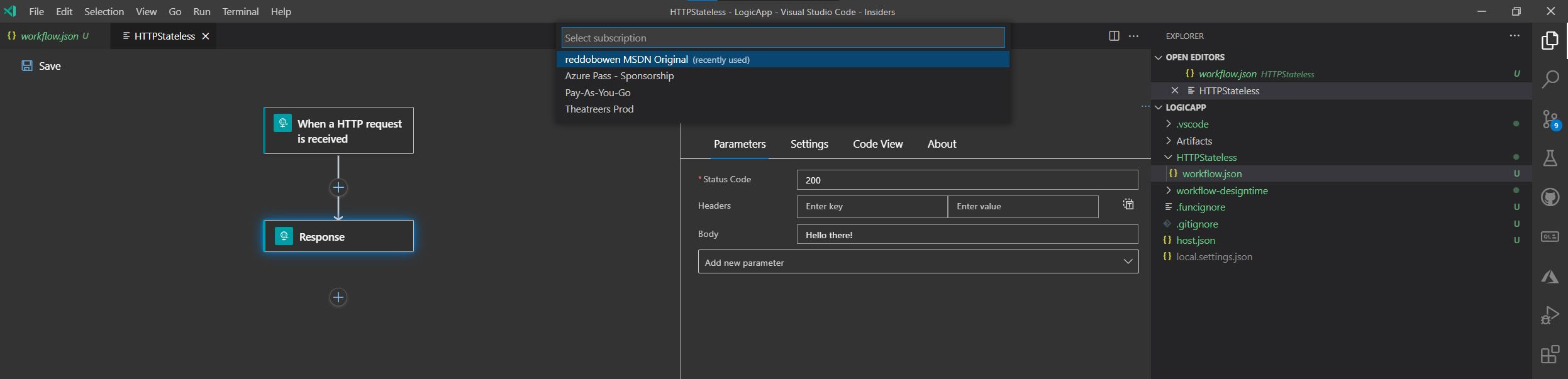

We could use the Logic Apps Visual Studio Code tooling to build our Logic Apps workflow and then deploy to the code-based Logic App deployment.
If you prefer, go ahead and do that. However, I’m going to move straight on to the Deployment Center approach.
Configuring deployment center
Let’s go ahead and deploy something to our Logic App! You may recall that we have a couple of options for deploying to a Logic App. Either deploying a code-based approach or deploying a Docker container image.
We’ll walkthrough both options below.
Deploying code representing a Logic App Workflow to a Logic App in an App Service Kubernetes Environment

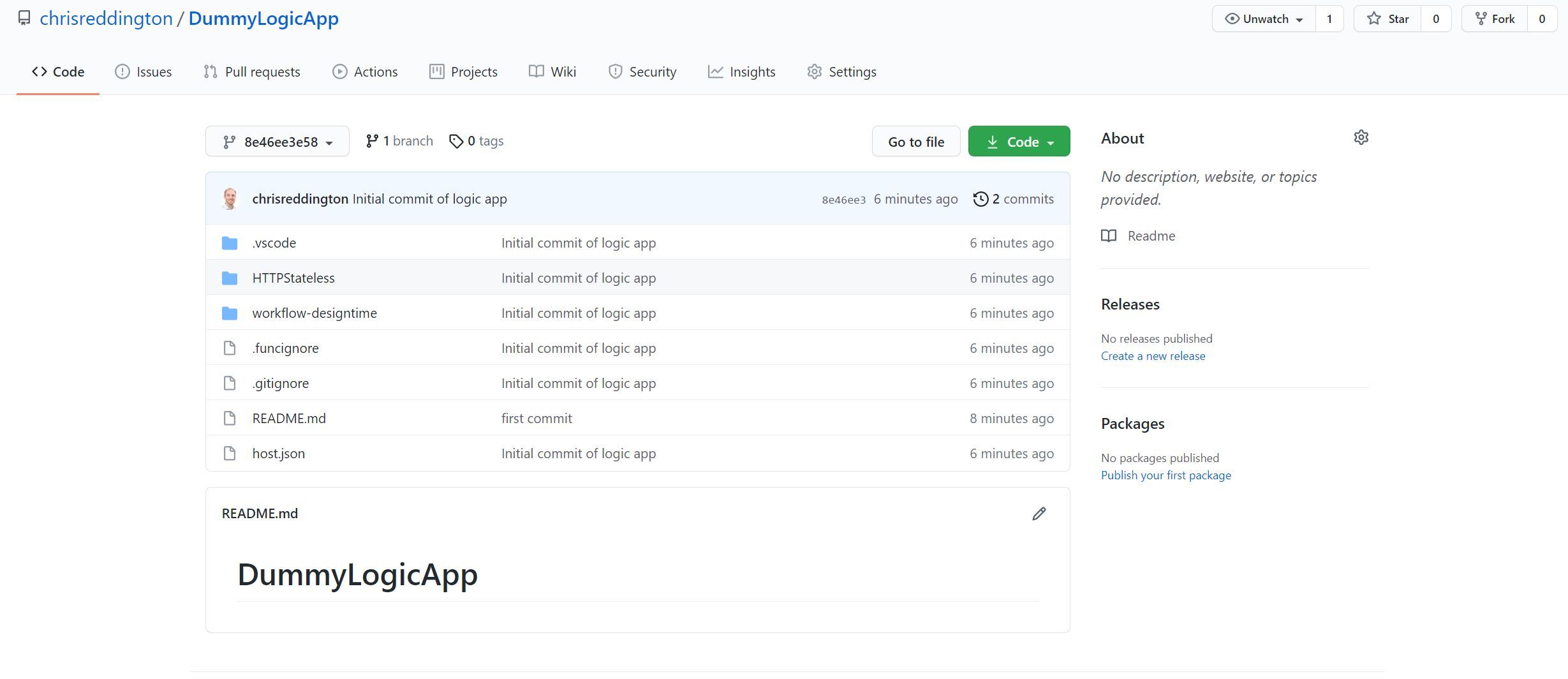

Before we start, I’ve gone ahead and created a Logic App through the Visual Studio Code tooling. I then committed the code to a Git repository and pushed to GitHub. If you’re interested in how you can use the VSCode tooling to create a Logic App workflow file, I’d encourage you to review the documentation, which is an excellent resource for this.

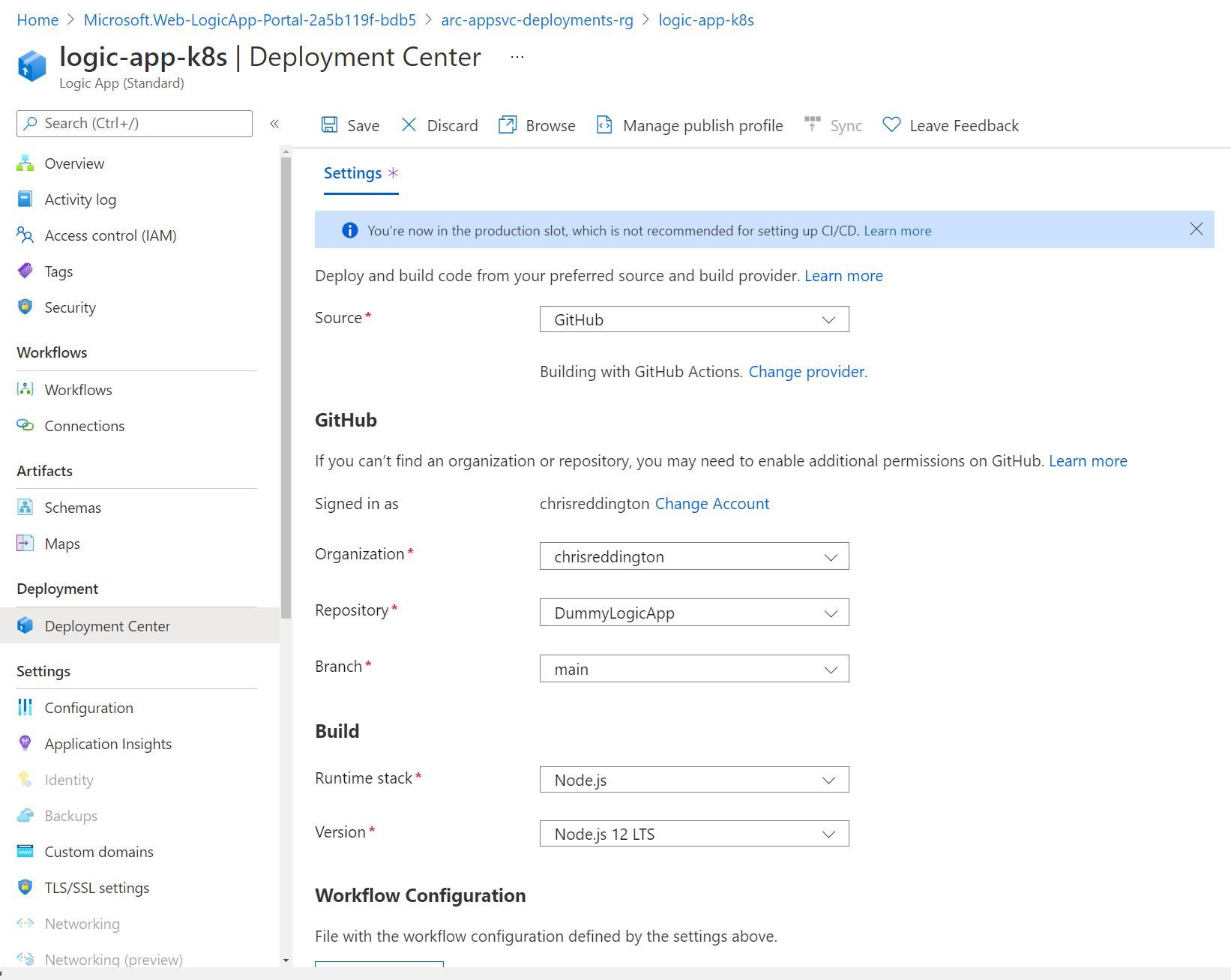

I navigated to the Deployment Center tab of my Logic and configured the source to be GitHub. I went ahead and configured the settings so that they matched up to the GitHub repository that I showed in the screenshot above.

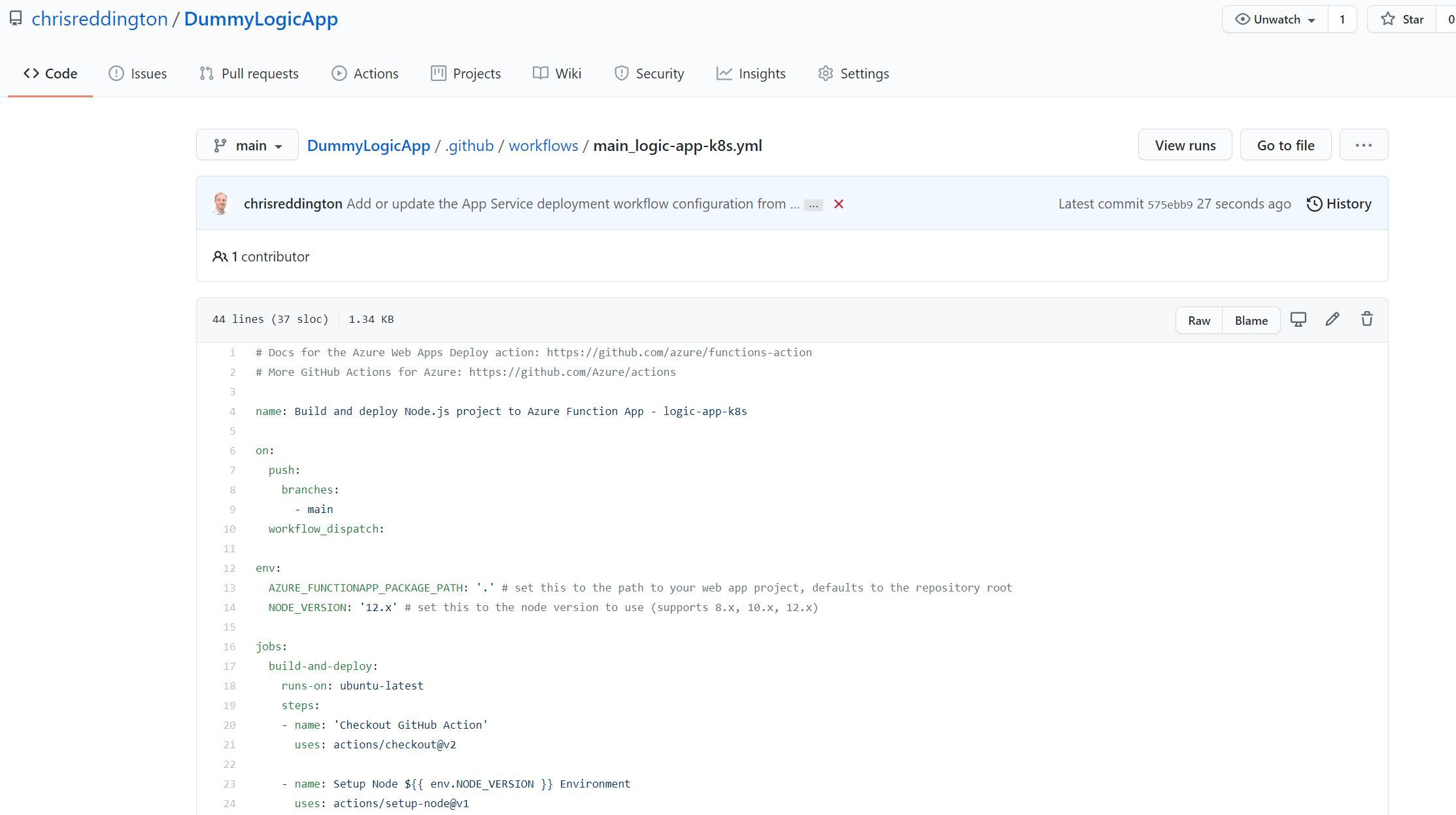

Once saved, navigate over to your GitHub repository. You’ll notice that there is a GitHub Action workflow file created for you. It performs a checkout of your GitHub repository, sets up a Node.js environment, resolves the needed dependencies through npm and then runs the Azure Function GitHub Action.
This didn’t work as expected. The GitHub Action workflow file failed with an error relating to package.json. This makes sense, as there’s no package.json (which is a requirement when trying to restore packages for Node.js projects) in the repository.
Tip: After some digging, I found the Azure/LogicApps repository which has a github-sample which contains an example of a Logic App workflow and deploying that using GitHub Actions. The GitHub Action workflow file used looks significantly different (i.e. no restoring node dependencies, and instead - just copies the files from the Repository to a subfolder and publishes that artifact for release as a zip).
While I had hoped this would deploy successfully, I had some issues. I made it up until the “Run Azure Functions Action” step, but then the action hung. It seemed as if it was unable to connect to the Logic App.
For now, we’ll pause on this approach and focus on the Docker based approach moving forwards.
Deploying a Docker Container to a Logic App in an App Service Kubernetes Environment
Just like Azure Functions, you can deploy a Logic App using a Docker Container Image. Ahead of time, I’ve gone ahead and built a Docker Container Image using the same code which was pushed up to the GitHub repository referenced in the previous section.
Tip: I make this step sound incredibly easy. From what I can see, the Logic Apps Visual Studio Code tooling doesn’t have an option to generate a Dockerfile for you. There were several Dockerfiles in the wild that used a very specific base image name, and didn’t feel quite right. After some digging, I found the Azure/LogicApps repository which has a github-sample, including a Dockerfile. I used that Dockerfile to build a docker image from my local machine and push that to the container registry. In a real world scenario, I would have a CI/CD workflow setup for that, but this is not the point of this blog post.
While the VSCode tooling doesn’t have an option to generate the Dockerfile, the Azure Functions runtime does. You can use the command
func init --docker-onlyto initialise the required Dockerfile for the project.
We’ll configure the Registry settings in Deployment Center to match with the Azure Container Registry, as well as the image that we have pushed up.
Before hitting save, I had my
kubectl get po -n appservice --watch command ready to go. The result is exactly as you would expect. A new pod gets deployed, while the previous instance (logic-app-k8s-docker-75cb6b5486-t9dtf) is terminated.
kubectl get po -n appservice --watch logic-app-k8s-5fb47788b5-6vp9w 2/2 Running 0 10h logic-app-k8s-5fb47788b5-7k5qs 2/2 Running 0 9h logic-app-k8s-5fb47788b5-9pblr 2/2 Running 0 9h logic-app-k8s-docker-75cb6b5486-t9dtf 2/2 Running 0 22s rb-arc-aks-appsvc-k8se-activator-6ff8f77d68-j5qd5 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-app-controller-766777cf79-flsdl 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-build-service-568b9d8d7-v7vw7 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-695gn 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-7bqx8 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-89px9 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-http-scaler-5c9676ffc9-s7w44 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-img-cacher-v5ppw 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-img-cacher-wqhvc 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-keda-metrics-apiserver-678946464-zzg5t 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-keda-operator-b7488958-27nmq 1/1 Running 0 10h rb-arc-aks-appsvc-k8se-log-processor-5ns8d 1/1 Running 101 10h rb-arc-aks-appsvc-k8se-log-processor-npnqk 0/1 Error 113 10h logic-app-k8s-docker-58578bc9c-jrb4v 0/2 Pending 0 0s logic-app-k8s-docker-58578bc9c-jrb4v 0/2 Pending 0 0s logic-app-k8s-docker-58578bc9c-jrb4v 0/2 ContainerCreating 0 0s logic-app-k8s-docker-58578bc9c-jrb4v 1/2 Running 0 3s logic-app-k8s-docker-58578bc9c-jrb4v 2/2 Running 0 8s logic-app-k8s-docker-75cb6b5486-t9dtf 2/2 Terminating 0 34s
The Logic App deployed, and I can see relatable logs in Application Insights (i.e. it’s detected the
HTTPStateless/triggers/manual/invoke endpoint). I had setup a basic Logic Apps to act as a request/response, and couldn’t call the URL directly with the
/api/HTTPStateless/triggers/manual/invoke endpoint that my Logic App was expecting. Instead my browser displayed a ’took too long to respond’ error. The Logic App works fine when running on the Azure Functions runtime locally on my machine, so I suspect is down to an application deployment issue when I push to the App Service Kubernetes Environment. This is something I’ll be digging into as a follow-up.
Configuring Application Insights for our Logic App

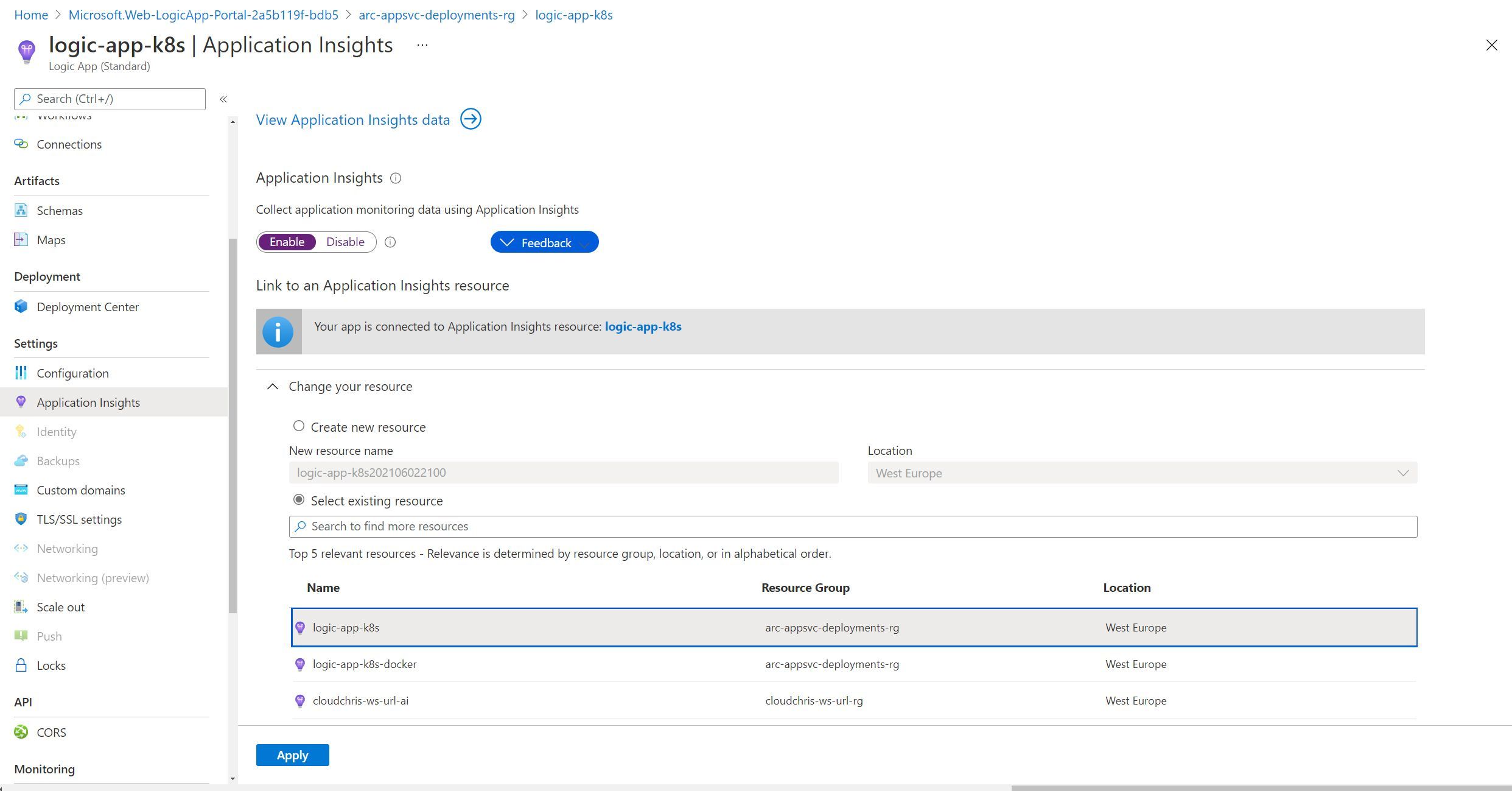

It is possible to use Application Insights to collect data from a Logic App in an App Service Kubernetes Environment, the exact same way that we would do so for a Function App. This appears to be part of the Function runtime, and is not currently available for App Services.
You will have likely configured this as enabled when you created your Logic App (I did, at least). Once again, the experience is no different to what we would expect of a Function App in the multi-tenanted hosting model.
Just to investigate, I went ahead and disabled Application Insights within the Logic App blade as shown above. I immediately received a pop up, asking as below -
You are about to turn off Application Insights. This will update app settings and restart your site. Do you want to continue?
To turn Application Insights entirely off, check that Application Insights SDK and the instrumentation key are removed from your application.
As you may have expected, if you’ve read my other posts in the series - I ran the command
kubectl get po -n appservice --watch ahead of time. I found the exact same behaviour as with the Function Apps. We did not see any pod redeployments - Nothing happened from a Kubernetes perspective.
I’d be interested to understand what actually happens when enabling / disabling App Insights. I suspect that this is related to the Azure Function Runtime in the container image, rather than the pods that are deployed in Kubernetes. However, I don’t have a fully conclusive answer.

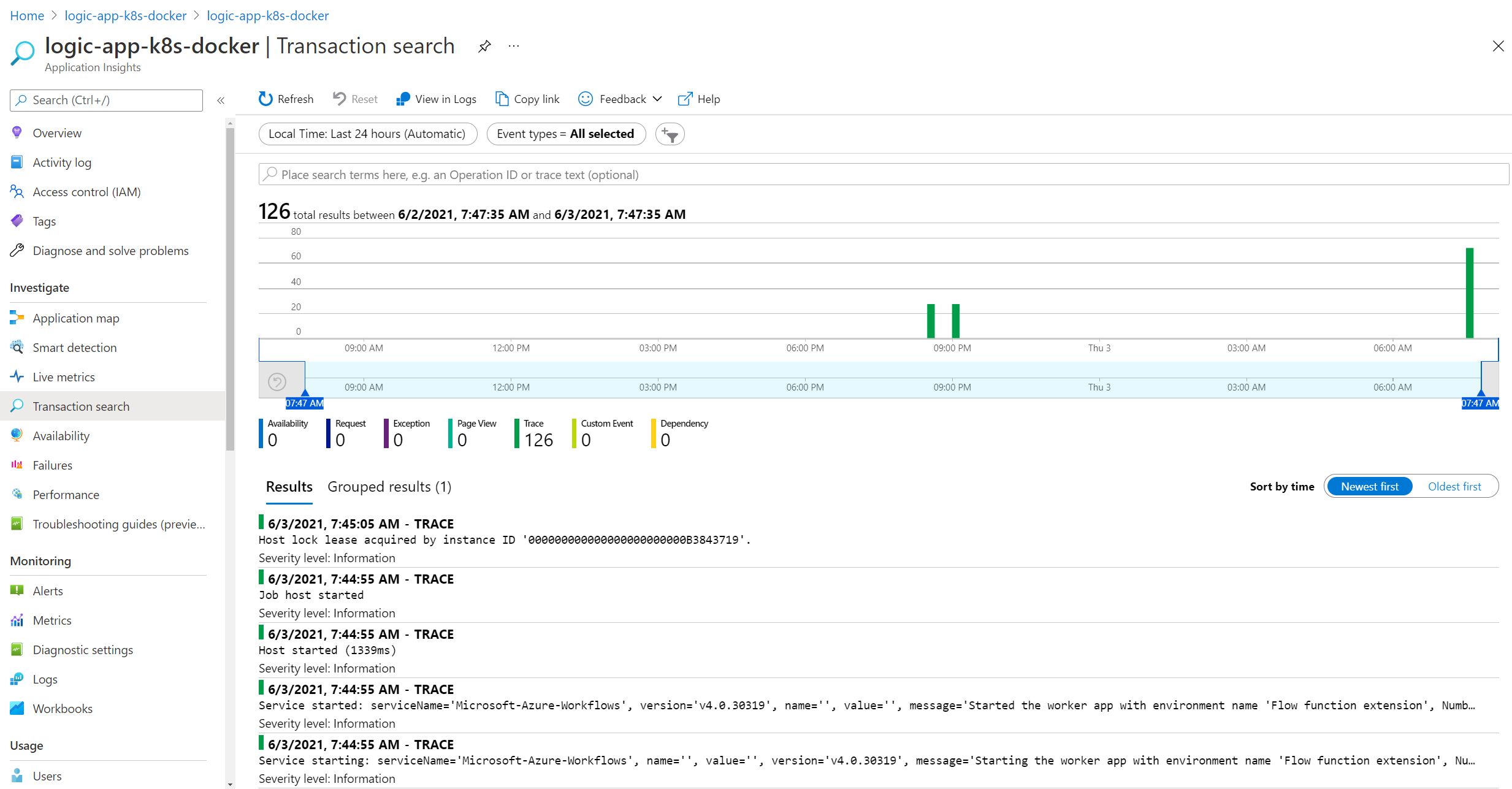

I navigated to the Application Insights resource for my Logic App deployed using a Docker container method. I can see that the logs are appearing within Application Insights as expected.
Configuring Custom Domains

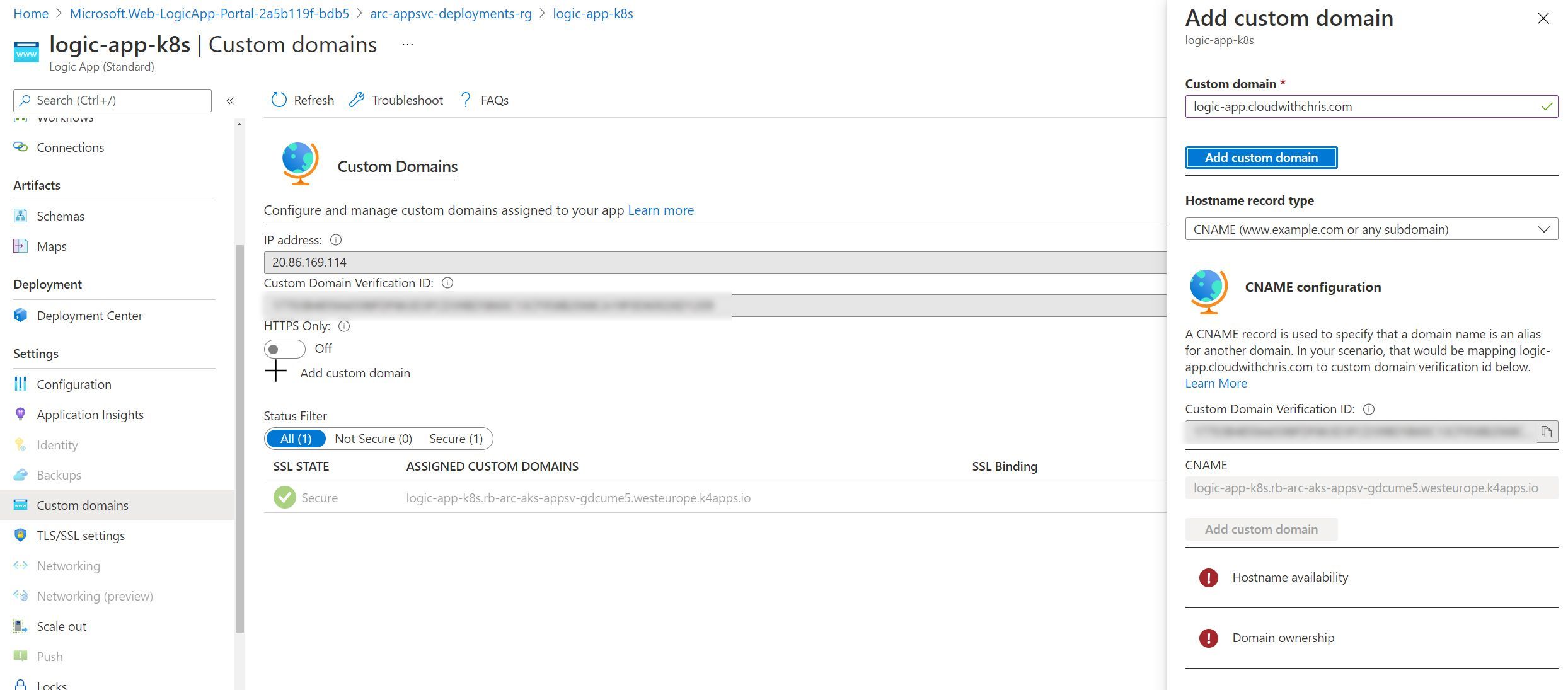

Custom domains is an available option in the left hand menu, though as with Azure Functions and App Services, I encountered issues as shown in the screenshot below.
This is one that I plan to investigate further, and determine whether this is a user interface challenge (e.g. should custom domains actually be grayed out as it’s unsupported, or is the validation experience not available through the user interface).
Scaling out your Logic App instances

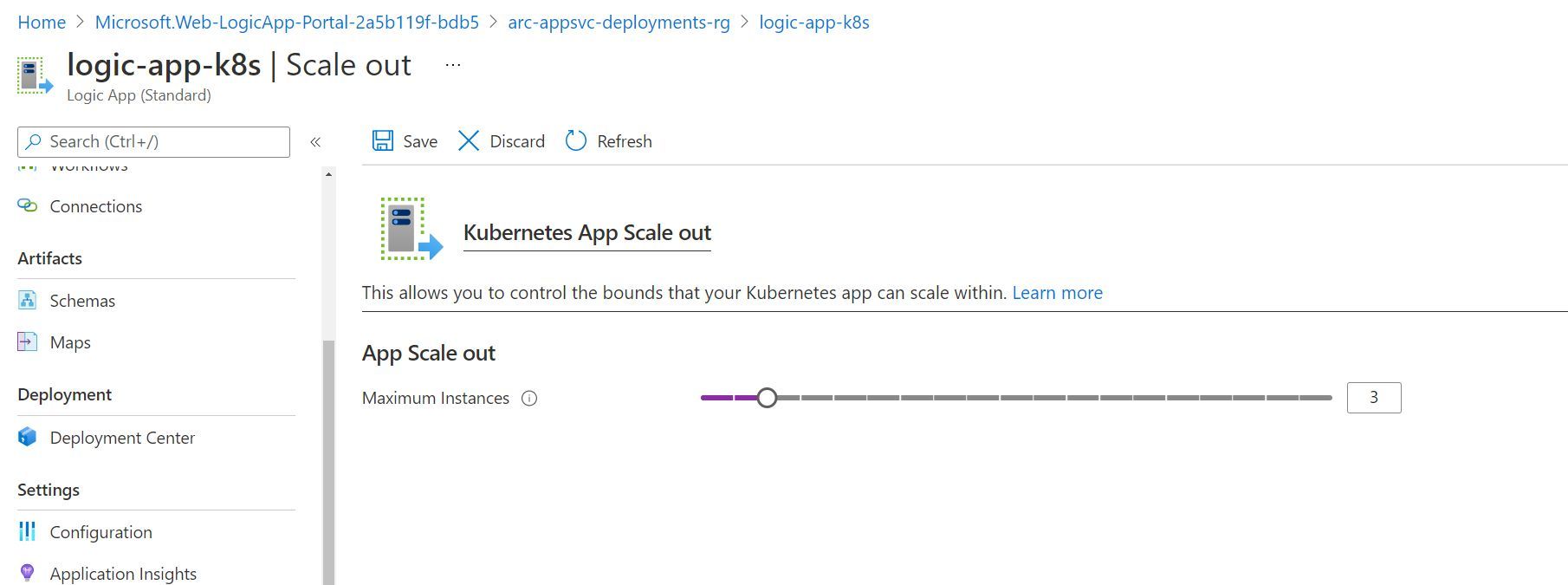

As is the case with many Platform as a Service (PaaS) services, scaling is as easy as adjusting a slider. This is no different when using an App Service Kubernetes environment. We can go ahead and adjust the slider to represent the maximum number of instances that we would like to scale to. Then, App Service for Kubernetes deals with creating the additional instances (Kubernetes pods) of our function app behind the scenes as needed.
If you have your Kubernetes-thinking hat on, then you’ll probably be able to determine where this is going. Before saving the new scale out configuration, I once again ran the command
kubectl get po -n appservice --watch. You’ll notice that Kubernetes maintains the replicaset (i.e. logic-app-k8s-5fb47788b5-6vp9w), but adds two additional pods to the replicaset. Again, this is unsurprising and in-line with how we’d expect Kubernetes to handle a scale out event for any Kubernetes workload.
kubectl get po -n appservice --watch NAME READY STATUS RESTARTS AGE logic-app-k8s-5fb47788b5-6vp9w 2/2 Running 0 66m logic-app-k8s-docker-5575695b6b-78xkw 2/2 Running 0 65m rb-arc-aks-appsvc-k8se-activator-6ff8f77d68-j5qd5 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-app-controller-766777cf79-flsdl 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-build-service-568b9d8d7-v7vw7 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-695gn 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-7bqx8 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-envoy-7bdd5bbdb7-89px9 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-http-scaler-5c9676ffc9-s7w44 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-img-cacher-v5ppw 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-img-cacher-wqhvc 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-keda-metrics-apiserver-678946464-zzg5t 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-keda-operator-b7488958-27nmq 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-log-processor-5ns8d 1/1 Running 0 74m rb-arc-aks-appsvc-k8se-log-processor-npnqk 0/1 CrashLoopBackOff 17 74m logic-app-k8s-5fb47788b5-9pblr 0/2 Pending 0 0s logic-app-k8s-5fb47788b5-9pblr 0/2 Pending 0 0s logic-app-k8s-5fb47788b5-7k5qs 0/2 Pending 0 0s logic-app-k8s-5fb47788b5-7k5qs 0/2 Pending 0 0s logic-app-k8s-5fb47788b5-9pblr 0/2 Init:0/1 0 0s logic-app-k8s-5fb47788b5-7k5qs 0/2 Init:0/1 0 0s logic-app-k8s-5fb47788b5-7k5qs 0/2 Init:0/1 0 1s logic-app-k8s-5fb47788b5-9pblr 0/2 Init:0/1 0 3s logic-app-k8s-5fb47788b5-7k5qs 0/2 PodInitializing 0 7s logic-app-k8s-5fb47788b5-7k5qs 1/2 Running 0 8s logic-app-k8s-5fb47788b5-9pblr 0/2 PodInitializing 0 9s logic-app-k8s-5fb47788b5-7k5qs 2/2 Running 0 12s logic-app-k8s-5fb47788b5-9pblr 1/2 Running 0 50s logic-app-k8s-5fb47788b5-9pblr 2/2 Running 0 53s
Custom Resource Definitions in Kubernetes
You can absolutely feel free to skip over this next section. However, as I’m comfortable with Kubernetes - I wanted to dig into some more detail about what’s going on behind the scenes with App Service. Specifically, what custom resource definitions got created when we set up the Application Services extension for our Azure Arc enabled Kubernetes cluster earlier? You can see there are several custom resource definitions on my Kubernetes cluster -
- Those ending k8se.microsoft.com relate to the Application Services Extension / App Services Kubernetes environment
- Those ending in clusterconfig.azure.com relate to the Azure Arc enabled Kubernetes cluster functionality
- Those ending in projectcalico.org and tigera.io relate to the Calico networking policy model that I have configured on my AKS cluster.
- Those ending in dapr.io relate to the DAPR project that I Have configured on my cluster
- Those ending in keda.sh relate to the KEDA project that was configured as part of the Application Services Extension / App Services Kubernetes environment
kubectl get crd NAME CREATED AT approutes.k8se.microsoft.com 2021-05-29T16:40:12Z apps.k8se.microsoft.com 2021-05-29T16:40:13Z azureclusteridentityrequests.clusterconfig.azure.com 2021-05-29T16:21:47Z azureextensionidentities.clusterconfig.azure.com 2021-05-29T16:21:47Z bgpconfigurations.crd.projectcalico.org 2021-05-29T16:18:49Z bgppeers.crd.projectcalico.org 2021-05-29T16:18:49Z blockaffinities.crd.projectcalico.org 2021-05-29T16:18:49Z clusterinformations.crd.projectcalico.org 2021-05-29T16:18:49Z clustertriggerauthentications.keda.sh 2021-05-29T16:40:13Z components.dapr.io 2021-05-29T16:40:12Z configurations.dapr.io 2021-05-29T16:40:12Z connectedclusters.arc.azure.com 2021-05-29T16:21:47Z customlocationsettings.clusterconfig.azure.com 2021-05-29T16:21:47Z extensionconfigs.clusterconfig.azure.com 2021-05-29T16:21:47Z felixconfigurations.crd.projectcalico.org 2021-05-29T16:18:49Z gitconfigs.clusterconfig.azure.com 2021-05-29T16:21:47Z globalnetworkpolicies.crd.projectcalico.org 2021-05-29T16:18:49Z globalnetworksets.crd.projectcalico.org 2021-05-29T16:18:49Z hostendpoints.crd.projectcalico.org 2021-05-29T16:18:49Z imagesets.operator.tigera.io 2021-05-29T16:18:49Z installations.operator.tigera.io 2021-05-29T16:18:49Z ipamblocks.crd.projectcalico.org 2021-05-29T16:18:49Z ipamconfigs.crd.projectcalico.org 2021-05-29T16:18:49Z ipamhandles.crd.projectcalico.org 2021-05-29T16:18:49Z ippools.crd.projectcalico.org 2021-05-29T16:18:49Z kubecontrollersconfigurations.crd.projectcalico.org 2021-05-29T16:18:49Z networkpolicies.crd.projectcalico.org 2021-05-29T16:18:49Z networksets.crd.projectcalico.org 2021-05-29T16:18:49Z placeholdertemplates.k8se.microsoft.com 2021-05-29T16:40:13Z scaledjobs.keda.sh 2021-05-29T16:40:13Z scaledobjects.keda.sh 2021-05-29T16:40:13Z subscriptions.dapr.io 2021-05-29T16:40:12Z tigerastatuses.operator.tigera.io 2021-05-29T16:18:49Z triggerauthentications.keda.sh 2021-05-29T16:40:13Z virtualapps.k8se.microsoft.com 2021-05-29T16:40:13Z workerapps.k8se.microsoft.com 2021-05-29T16:40:13Z
You’ll notice when running
kubectl get apps.k8se.microsoft.com --all-namespaces, we can see several Kubernetes resources. The list includes the two Logic Apps that I have created throughout this post. If you have been deploying additional resources (E.g. Function Apps or Web Apps), then you may see those here as well.
kubectl get apps.k8se.microsoft.com --all-namespaces NAMESPACE NAME AGE appservice logic-app-k8s 68m appservice logic-app-k8s-docker 67m
Let’s take a peek at the Logic App resource that is in our Kubernetes Cluster.
kubectl describe apps.k8se.microsoft.com logic-app-k8s -n appservice Name: logic-app-k8s Namespace: appservice Labels: k8se.microsoft.com/environmentName=production Annotations: <none> API Version: k8se.microsoft.com/v1alpha1 Kind: App Metadata: Creation Timestamp: 2021-06-02T20:04:15Z Finalizers: app.finalizer.k8se.io Generation: 3 Managed Fields: API Version: k8se.microsoft.com/v1alpha1 Fields Type: FieldsV1 fieldsV1: f:metadata: f:finalizers: f:status: .: f:appHealthStatus: f:appProvisioningState: f:observedGeneration: Manager: appcontroller Operation: Update Time: 2021-06-02T20:04:30Z API Version: k8se.microsoft.com/v1alpha1 Fields Type: FieldsV1 fieldsV1: f:metadata: f:labels: .: f:k8se.microsoft.com/environmentName: f:spec: .: f:appType: f:code: .: f:packageRef: .: f:framework: f:hostingFramework: f:config: .: f:appSettings: .: f:name: f:slotName: f:httpOptions: .: f:hostnames: f:ipSecurityRestrictions: f:port: f:scmIpSecurityRestrictions: f:scmIpSecurityRestrictionsUseMain: f:scaleOptions: .: f:maxReplicaCount: f:minReplicaCount: f:sku: f:stopped: f:triggerOptions: Manager: unknown Operation: Update Time: 2021-06-02T21:10:39Z Resource Version: 2034394 UID: 2351137b-5575-419c-a281-cc4b85331741 Spec: App Type: functionapp,kubernetes,linux Code: Package Ref: Framework: Node|12 Hosting Framework: azure-functions|3 Config: App Settings: Name: logic-app-k8s-secrets Slot Name: production Http Options: Hostnames: Domain: logic-app-k8s.rb-arc-aks-appsv-gdcume5.westeurope.k4apps.io Ip Security Restrictions: Port: 80 Scm Ip Security Restrictions: Scm Ip Security Restrictions Use Main: false Scale Options: Max Replica Count: 4 Min Replica Count: 3 Sku: Kubernetes Stopped: false Trigger Options: Status: App Health Status: Healthy App Provisioning State: Provisioned Observed Generation: 3 Events: <none>
We can identify some information about the scale options that have been set within the Azure Function in the Azure Portal, the hostnames that are configured, information around the staging slots. There is nothing particularly exciting that we didn’t already know at this point, though it’s always useful to see how this comes together in a Custom Resource Definition.

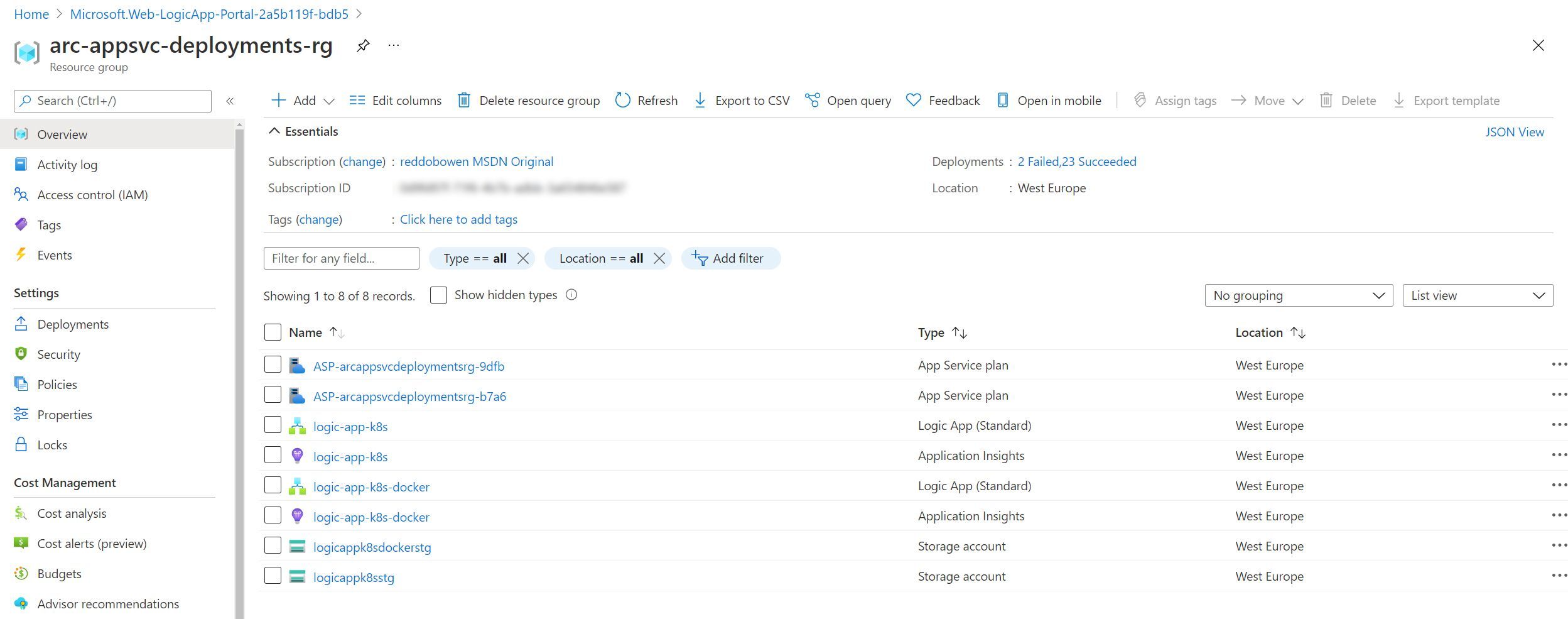

Resources available in the Azure Resource Group
That’s another whistle stop tour of a service deployed in Kubernetes. Unsurprisingly (if you’ve followed the other posts), the resources deployed in the Azure Resource Group don’t look particularly different to what we would deploy into the multi-tenanted environment.
This post is similar in nature to part 2, and very similar to part 3. Neither of these similarities are surprising as all of these services can run on App Services. Regardless of whether you’re coming from a Logic Apps background, a Kubernetes background, or both - I hope that this post has been useful to you. I’m thoroughly enjoying writing this series, and think there’s some huge potential of App Service for Kubernetes environment in an Azure Arc enabled Kubernetes cluster.
With that, any comments and feedback are always appreciated over on Twitter, @reddobowen. Don’t forget, there are several posts in this series that continue the story of Azure Arc for Apps.
- Part 1 - Setting up an Azure Arc enabled Kubernetes cluster
- Part 2 - Deploying App Services to Kubernetes
- Part 3 - Deploying Azure Functions into an App Service Kubernetes Environment
- Part 5 - Deploying an Azure API Management gateway to an Azure Arc enabled Kubernetes Cluster
- Part 6 - Setting up Event Grid on Kubernetes with Azure Arc
I hope that you’ll continue on with the series, in which case - read on! Otherwise, until the next blog post - Thanks for reading, and bye for now!
