February 22, 2022

Back in November, GitHub announced its OpenID Connect capability for cloud deployments was generally available. This has been on my list to try out, and I finally managed to get around to it! With scenarios like this, I prefer to do something real and hands-on, rather than mocked, or a proof of concept. I decided to refactor my GitHub Action workflows for cloudwithchris.com, removing the need for secrets stored in GitHub. In this post, I outline my journey through this.

Contents

Back in November, GitHub announced its OpenID Connect capability for cloud deployments was generally available. This has been on my list to try out, and I finally managed to get around to it! With scenarios like this, I prefer to do something real and hands-on, rather than mocked, or a proof of concept. I decided to refactor my GitHub Action workflows for cloudwithchris.com, removing the need for secrets stored in GitHub. In this post, I outline my journey through this.

But first though, a warning.

Warning: There are some potential gotchas in this example. I’ll outline them as we go through, but it’s important to make that sure you understand the challenges that can occur. Particularly around the token used with Azure Static Web Apps and protecting that. More on that later though.

What is OpenID Connect?

To level set, let’s first discuss Open ID Connect. OpenID Connect is a protocol that allows you to authenticate with a third party, such as Microsoft Azure, and then use that authentication to gain access to your account.

From the OpenID Foundation themselves -

OpenID Connect 1.0 is a simple identity layer on top of the OAuth 2.0 protocol. It allows Clients to verify the identity of the End-User based on the authentication performed by an Authorization Server, as well as to obtain basic profile information about the End-User in an interoperable and REST-like manner.

OpenID Connect allows clients of all types, including Web-based, mobile, and JavaScript clients, to request and receive information about authenticated sessions and end-users. The specification suite is extensible, allowing participants to use optional features such as encryption of identity data, discovery of OpenID Providers, and session management, when it makes sense for them.

So, we have established that OpenID connect is a standard for authentication. As it builds upon OAuth 2.0, it uses the same concepts such as a JSON Web Token (JWT). OpenID connect can be integrated into many scenarios, so will make it easier to integrate with multiple provider (e.g. authenticating to various cloud providers, or platforms). Great!

For the purposes of this post, we’re focusing specifically on authentication with Microsoft Azure. And then later, deploying to Azure Static Web Apps.

Setting up an Application in Azure Active Directory

To enable OpenID connect, we’ll have to explicitly handle this in our GitHub Action workflow (we’ll take a look at that later). We must also have an application registration configured in our Azure Active Directory. Think about this in the same way that we used Service Principals, i.e. we need an object in our Azure Active Directory tenant that represents the DevOps automation that will be taking place.

Note: Our usual recommended practices apply. If you have multiple environments, you would likely create a separate Service Principal for each. You want to consider the principals of least privilege, zero-trust, giving the Service Principal ’enough’ permissions to perform the actions that you need.

Let’s head over to Azure Active Directory. Create a new App Registration.

Screenshot showing the Azure Active Directory App Registration page
Screenshot showing the Azure Active Directory App Registration page

Make sure to give your App Registration a sensible name. Think about the scope (i.e. principal of least privilege of what you’re deploying). For my scenario, I’ll first be focusing on GitHub Action Workflows for my preview environment of cloudwithchris.com.

As an example, I named mine GHA - CloudWithChris/cloudwithchris.com (Staging). Keep the rest of the settings default (i.e. Single Tenant is the supported account type, Redirect URI is not required).

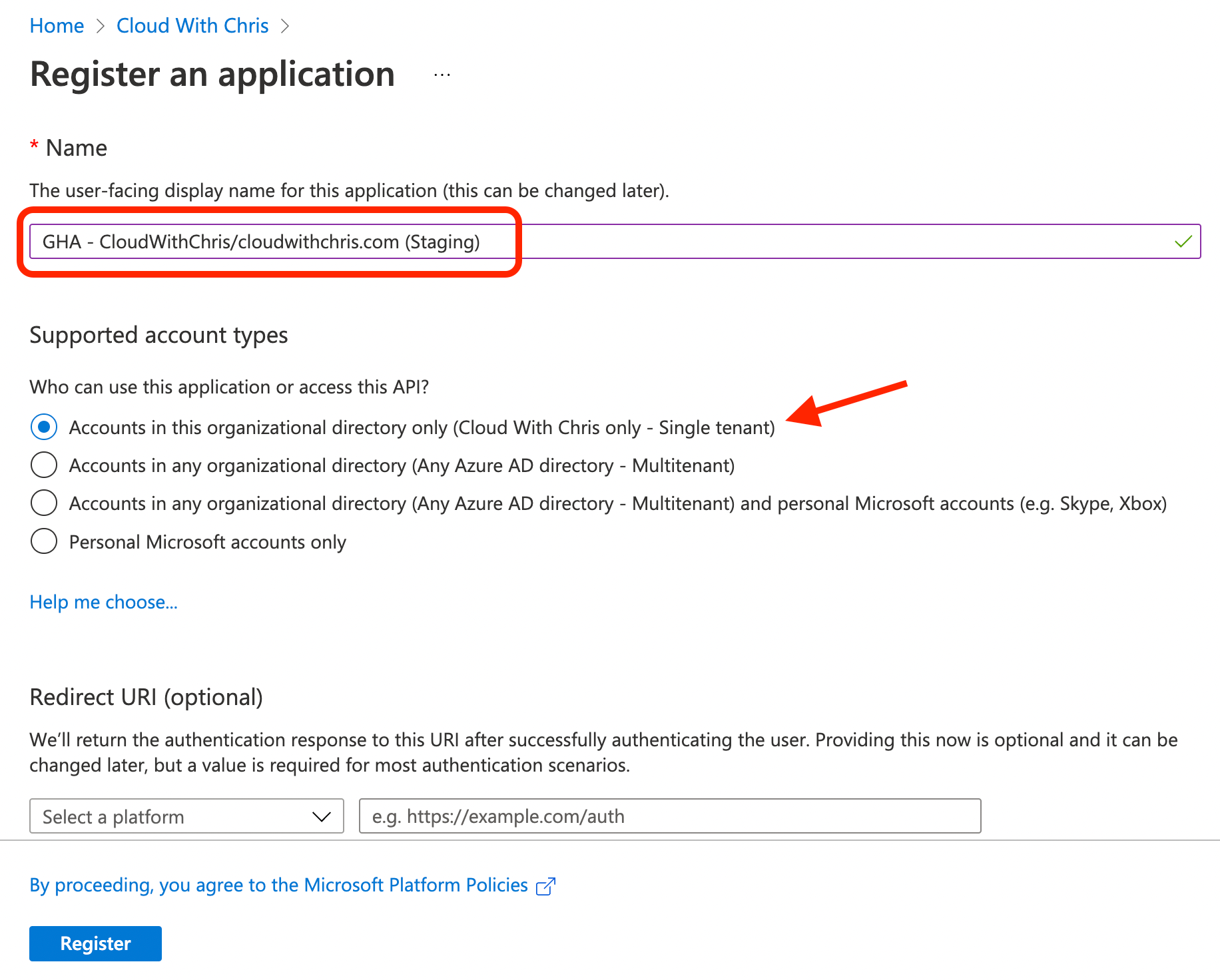

Screenshot showing the creation of my own App Registration called GHA - CloudWithChris/cloudwithchris.com (Staging), as a single tenant app with no redirect URI
Screenshot showing the creation of my own App Registration called GHA - CloudWithChris/cloudwithchris.com (Staging), as a single tenant app with no redirect URI

At this point, we can navigate to our newly created Azure Active Directory App Registration.

Screenshot showing that the App Registration 'GHA - CloudWithChris/cloudwithchris.com (Staging)' was successfully created. An arrow is pointing to the 'Certificates & Secrets' menu item for the next step.
Screenshot showing that the App Registration 'GHA - CloudWithChris/cloudwithchris.com (Staging)' was successfully created. An arrow is pointing to the 'Certificates & Secrets' menu item for the next step.

Click on the Certificates & Secrets menu item. You will see that there are three tabs, click on the Federated Credentials tab. We can see that there are no federated credentials configured yet.

We’ll need to establish the appropriate trust with GitHub actions. We can do this by clicking on the Add Credential button.

Screenshot showing that there are 0 Certificates, 0 Client Secrets and 0 Federated Credentials. The screenshot shows the Federated Credentials Tab, and guides the user to the 'Add Credential' button.
Screenshot showing that there are 0 Certificates, 0 Client Secrets and 0 Federated Credentials. The screenshot shows the Federated Credentials Tab, and guides the user to the 'Add Credential' button.

On the resulting screen, you will first have to choose a Federated credential scenario. The options are either GitHub Actions deploying to Azure resources, Kubernetes accessing Azure resources, or Other issuer.

For our scenario, we’ll be choosing GitHub Actions deploying to Azure resources. The User Interface then guides you through the process of creating a new federated credential with GitHub Actions.

My configuration is as follows -

  • Organization: CloudWithChris
    • This is the name of the GitHub Organization / User Account where your repository is stored
  • Repository: cloudwithchris.com
    • This is the name of the GitHub repository under which your GitHub action will be running.
  • Entity Type: Environment
    • There are several options for entity types, including Environment, Branch, Pull Request and Tag. You are scoping the precise entity that is allowed to use the credentials.
    • In my GitHub actions configuration, I use Environments extensively (e.g. for Approvals to push to production). Environment is the most sensible option for me.

Screenshot showing the Federated credential scenario chosen is GitHub Actions deploying to Azure resources. This results in the Organization, Repository and Entity Type options being displayed, with values configured as described in the text above.
Screenshot showing the Federated credential scenario chosen is GitHub Actions deploying to Azure resources. This results in the Organization, Repository and Entity Type options being displayed, with values configured as described in the text above.

You will then need to enter the environment name that you want to deploy to. This is the name of the environment as shown in your GitHub repository’s Environments settings.

Screenshot showing the environments configured in the CloudWithChris/cloudwithchris.com GitHub repository. There are 3 environments - production.crosspost, staging.azure and production.azure.
Screenshot showing the environments configured in the CloudWithChris/cloudwithchris.com GitHub repository. There are 3 environments - production.crosspost, staging.azure and production.azure.

Navigate back to the Azure Active Directory ‘Add a credential’ screen. Enter the GitHub environment name that you’re configuring. In my case, that is staging.azure.

There is a section further down the page, Credential Details. These are some useful metadata to help you understand at-a-glance what is configured. It’s worth putting something meaningful in here, so that you can quickly and easily understand what external entities are being granted authentication permissions.

Screenshot showing the GitHub environment name as staging.azure. The name of the Credential is CloudWithChris-Staging, and has a descriptive description.
Screenshot showing the GitHub environment name as staging.azure. The name of the Credential is CloudWithChris-Staging, and has a descriptive description.

Note: Notice that in the screenshots for the Federated Credential creation process, Issuer, Subject identifier and Audience are all pre-configured. You can change these values if you wish, but it’s not necessary. Further information on these values can be found in the GitHub documentation.

Click Add to create your federated credential. You will be taken back to the Tokens & Secrets page, where you should see the newly created credential.

Screenshot showing that there are 0 Certificates, 0 Client Secrets and 1 federated credential (CloudWithChris-Staging).
Screenshot showing that there are 0 Certificates, 0 Client Secrets and 1 federated credential (CloudWithChris-Staging).

To complete the configuration on the Azure side, you’ll want to assign the appropriate permissions to the Azure Active Directory App Registration. This is the same process that we would use to grant permission to a user, a group, service principal or managed identity. We will be using Azure Role Based Access Control (RBAC) to achieve this!

Note: If you’re planning on configuring an App Registration for multiple environments, feel free to repeat the steps for each environment. I have two environments, production.azure and staging.azure. These are represented by an app registration of GHA - CloudWithChris/cloudwithchris.com (Prod) and GHA - CloudWithChris/cloudwithchris.com (Staging) respectively.

Navigate to the resource that you want to grant access to. In my case, I’m granting access to the Resource Group that contains my Azure Static Web App and Azure Front Door.

Screenshot showing the permissions tab of the Azure Resource Group
Screenshot showing the permissions tab of the Azure Resource Group

From there, click on Add > Role Assignment and follow the role assignment process as you would for any resource.

Note: The exact permissions that you wish to configure will depend on what you are trying to automate. As a reminder, follow the principal of least privilege - Give just enough permissions (and scope) to get the job done. Don’t provide too much access. For the purposes of this blog post - I have assigned contributor access.

In a production environment, I would work to tighten this up further if possible.

Screenshot capturing the process mid-flow assigning a role to the GHA - CloudWithChris/cloudwithchris.com (Staging) App Registration
Screenshot capturing the process mid-flow assigning a role to the GHA - CloudWithChris/cloudwithchris.com (Staging) App Registration

Once you have assigned the permissions, we have completed the needed set up on the Azure side. Time to move across to GitHub!

Setting up GitHub Actions to use OpenID Connect

To use OpenID Connect to authenticate to Azure, we’ll need to use the Azure/login GitHub Action. The readme of this repository contains all the information needed to login using OpenID Connect-based Federated credentials.

There are two primary steps that you need to complete -

  • In your GitHub Actions workflow, set the permissions property with a child property of id-token: write. You will want to set this at the level where you will need the token (e.g. At the workflow level, or job level).
    • For me, only specific jobs in my GitHub Action workflow use the staging.azure environment, so I have scoped mine at the job level. We’ll touch on that a bit further down in this section!
  • In the configuration of your Azure/login step, pass the App Registration Client ID, Azure Active Directory Tenant ID and Azure Subscription ID. Note that a Client Secret is not required.

The first step, is focused around setting the permissions property.

permissions:
      id-token: write
      contents: read

In my case, I have set this at the job level, so that it can requested only when the staging.azure environment is used, as shown below.

deploy_preview:
 if: (github.event.pull_request.head.repo.full_name == github.repository && github.event.action != 'closed')
 runs-on: ubuntu-latest
 needs: [build]
 name: Deploy (Preview)
 environment:
   name: staging.azure
 permissions:
       id-token: write
       contents: read
 ...

These permissions are required to request the OIDC JWT ID token. Further details can be found about this on the GitHub docs.

Tip: For my particular scenario, I will be deploying to the same subscription across all of my environments. That subscription implies that the same Tenant ID would be used as well.

To make configuration easier, I have added repository secrets for the AZURE_TENANT_ID and AZURE_SUBSCRIPTION_ID.

Screenshot showing AZURE_TENANT_ID and AZURE_SUBSCRIPTION_ID stored as repository secrets
Screenshot showing AZURE_TENANT_ID and AZURE_SUBSCRIPTION_ID stored as repository secrets

Then, I have created an AZURE_CLIENT_ID secret in each of the environments, so that the appropriate Client ID is only pulled in when needed.

Screenshot showing AZURE_CLIENT_ID is stored as an environment secret. There is an entry for staging.azure, as well as an entry for production.azure
Screenshot showing AZURE_CLIENT_ID is stored as an environment secret. There is an entry for staging.azure, as well as an entry for production.azure

If you are deploying to multiple subscriptions, then you would need to specify the AZURE_SUBSCRIPTION_ID on a per-environment basis. If the subscriptions are across multiple Azure Active Directory tenants, then you would need to specify this on a per-environment basis as well.

Let’s pause, and take a moment to reflect on what we’ve done so far.

  • We established trust between Azure and a GitHub Action running in the CloudWithChris/cloudwithchris.com repository targeting the staging.azure environment.
  • We have added the AZURE_SUBSCRIPTION_ID, AZURE_TENANT_ID AND AZURE_CLIENT_ID values as repository secrets for easy access.
  • Next up, we need to add the Azure/Login step to our GitHub Action workflow, and configure it for the OpenID connect scenario.

This is a fairly trivial step. If you’ve named your secrets using the same convention as me, then you can directly use the below snippet.

- name: 'Az CLI Login via OIDC'
  uses: azure/login@v1
  with:
    client-id: ${{ secrets.AZURE_CLIENT_ID }}
    tenant-id: ${{ secrets.AZURE_TENANT_ID }}
    subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}

When you execute your GitHub Action workflow, you should see in the output that the step is using OIDC Authentication.

Screenshot showing the client-id, tenant-id and subscription-id properties have been set (but obfuscated due to being stored as secrets). It then shows 'Using OIDC authentication...', displaying the issuer as well as the subject claim.
Screenshot showing the client-id, tenant-id and subscription-id properties have been set (but obfuscated due to being stored as secrets). It then shows 'Using OIDC authentication...', displaying the issuer as well as the subject claim.

Adjusting the Azure Static Web Apps Deployment

We’re now at the stage where we can begin refactoring our existing Azure Static Web Apps deployment step. This is where some of the potential challenges can come in. This section requires a bit of context.

When you create a new Azure Static Web App and configure it with GitHub, it will automatically create the GitHub action workflow for you. It’s a brilliant way of nudging you towards DevOps practices from the offset. One minor downside is that it uses a token to deploy to the Static Web App. You can rotate that token, but of course - it could potentially be a security risk if not properly handled.

Hence this blog post, and exploring the idea of OpenID connect to deploy to Azure Static Web Apps.

Unfortunately, the token is still needed to deploy to Azure Static Web Apps, as there is no built-in Azure RBAC role that enables you to deploy. (If there is and I haven’t stumbled upon it, please let me know! Likewise, if this changes in the future - please let me know and I can update this post to suit!)

In the meantime, we can use the Azure/Login OIDC scenario, so that we can obtain the token as part of the GitHub action workflow, rather than storing it in the repository secrets.

To achieve this, we can use the Azure/CLI GitHub Action, in combination with the az staticwebapp secrets list CLI command.

- name: "Get SWA Token"
  uses: azure/CLI@v1
  with:
    azcliversion: ${{ env.AZURE_CLI_VERSION }}
    inlineScript: |
            echo "SWA_TOKEN=$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')" >> $GITHUB_ENV

Note: Make sure that you are using at least Azure CLI Version 2.28.0. This is the version that supports the az staticwebapp secrets list command, as can be found in the Azure CLI Changelog for the September 07, 2021 release.

The above snippet will add the SWA_TOKEN environment variable to the GitHub Action workflow. If you’re unfamiliar with this syntax, I encourage you to read these GitHub docs.

Pause for a moment, and think about the potential problem here. We’re adding the SWA_TOKEN to the workflow as an environment variable. Have you seen us make this secret in any way at all?

Warning: If you run the above snippet, you will see the SWA_TOKEN environment variable in the GitHub Action workflow. This is a security risk, as it is being outputted to the output of the workflow for anyone to see.

This is learned by experience! Don’t worry, I have rotated my token, and have now updated the workflow to use the below approach.

Fortunately, there is a way to avoid this. Again, the GitHub Docs have us covered. We can use the ::add-mask:: workflow command to mask the SWA_TOKEN environment variable.

Another warning: This does not dynamically mask a reference of the environment variable. It will mask the contents itself.

What does this mean? In the very slim chance that you rotate the token between running the first step in the snippet below, and the second step in the snippet below, you would once again see the SWA_TOKEN environment variable in the GitHub Action workflow.

It is unlikely, but there is still a potential risk. This is why I would prefer an option to use RBAC permissions to deploy to the Azure Static Web App, rather than having to continue using this token.

- name: "Add a mask to the SWA Token"
  uses: azure/CLI@v1
  with:
    azcliversion: ${{ env.AZURE_CLI_VERSION }}
    inlineScript: |
            echo "::add-mask::$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')"
- name: "Get SWA Token"
  uses: azure/CLI@v1
  with:
    azcliversion: ${{ env.AZURE_CLI_VERSION }}
    inlineScript: |
            echo "SWA_TOKEN=$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')" >> $GITHUB_ENV

Another another warning: Okay Chris, I understand what you’re doing here. But why not combine them into the same step?

It’s a great question, and that’s exactly the path I went down initially as well! e.g.

- name: "Add a mask to the SWA Token"
  uses: azure/CLI@v1
  with:
    azcliversion: ${{ env.AZURE_CLI_VERSION }}
    inlineScript: |
      echo "::add-mask::$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')"
      echo "SWA_TOKEN=$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')" >> $GITHUB_ENV

However, you can see the result below… A leaked secret in the logs!

Screenshot showing the single step combining the Mask and Azure CLI in one, resulting in a leaked credential in the azure/static-web-apps-deploy step as the masking has not correctly been configured
Screenshot showing the single step combining the Mask and Azure CLI in one, resulting in a leaked credential in the azure/static-web-apps-deploy step as the masking has not correctly been configured

Unfortunately, it seems that it is required to have these as entirely separate tasks. The output does not get masked until the step has completed. This has been raised as a GitHub Docs issue and references additional discussions where the issue has been encountered.

At this point, we can finally get around to updating the Azure Static Web App deployment step.

- name: Build And Deploy
  id: builddeploy
  uses: Azure/static-web-apps-deploy@v1
  with:
    azure_static_web_apps_api_token: ${{ env.SWA_TOKEN }}
    repo_token: ${{ secrets.GITHUB_TOKEN }}
    action: 'upload'
    app_location: 'website'
    skip_app_build: true

Notice that the azure_static_web_apps_api_token is now using our masked environment variable, as opposed to the default secret that is stored as a GitHub repository secret.

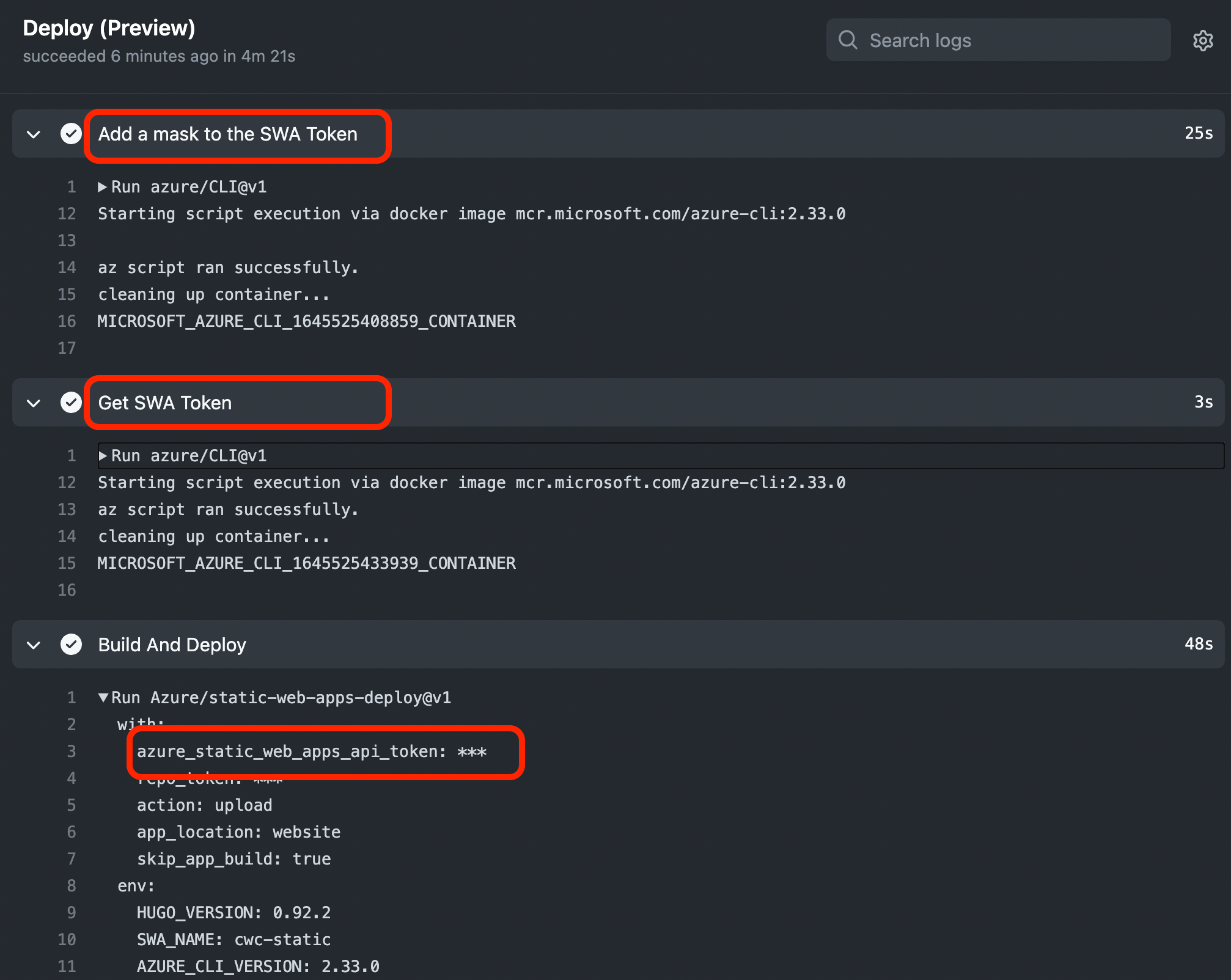

Screenshot showing the steps separating the Mask and Azure CLI in two, resulting in the credential being masked in the azure/static-web-apps-deploy step
Screenshot showing the steps separating the Mask and Azure CLI in two, resulting in the credential being masked in the azure/static-web-apps-deploy step

And now, to bring this all together.

# Environment variables used for consistency across the workflow.
env:
  HUGO_VERSION: '0.92.2'
  SWA_NAME: 'cwc-static'
  AZURE_CLI_VERSION: '2.33.0'
jobs:
  build:
    if: github.event_name == 'push' || (github.event.pull_request.head.repo.full_name == github.repository && github.event.action != 'closed')
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v2
      with:
        submodules: 'true'
    - name: 'Install Node Dependencies'
      run: npm ci
    - name: 'Setup Hugo on Runner'
      uses: peaceiris/actions-hugo@v2
      with:
        hugo-version: ${{ env.HUGO_VERSION }}
        extended: true
    - name: 'Build and Minify Hugo Contents for Production'
      run: hugo --minify --baseURL 'https://www.cloudwithchris.com'
      if: ${{ github.ref == 'refs/heads/main' }}
    - name: 'Build and Minify Hugo Contents for other branches'
      run: hugo --minify
      if: ${{ github.ref != 'refs/heads/main' }}
    - name: 'Upload Generated Static Content as Website Artifact'
      uses: actions/upload-artifact@v1
      with:
        name: website
        path: ${{ github.workspace }}/public
  deploy_preview:
    if: (github.event.pull_request.head.repo.full_name == github.repository && github.event.action != 'closed')
    runs-on: ubuntu-latest
    needs: [build]
    name: Deploy (Preview)
    environment:
      name: staging.azure
    permissions:
          id-token: write
          contents: read
    steps:
      - name: 'Download Website Artifact'
        uses: actions/download-artifact@v1
        with:
          name: website
      - name: 'Az CLI Login via OIDC'
        uses: azure/login@v1
        with:
          client-id: ${{ secrets.AZURE_CLIENT_ID }}
          tenant-id: ${{ secrets.AZURE_TENANT_ID }}
          subscription-id: ${{ secrets.AZURE_SUBSCRIPTION_ID }}
      - name: "Add a mask to the SWA Token"
        uses: azure/CLI@v1
        with:
          azcliversion: ${{ env.AZURE_CLI_VERSION }}
          inlineScript: |
                        echo "::add-mask::$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')"
      - name: "Get SWA Token"
        uses: azure/CLI@v1
        with:
          azcliversion: ${{ env.AZURE_CLI_VERSION }}
          inlineScript: |
                        echo "SWA_TOKEN=$(az staticwebapp secrets list -n ${{ env.SWA_NAME }} | jq -r '.properties.apiKey')" >> $GITHUB_ENV
      - name: Build And Deploy
        id: builddeploy
        uses: Azure/static-web-apps-deploy@v1
        with:
          azure_static_web_apps_api_token: ${{ env.SWA_TOKEN }}
          repo_token: ${{ secrets.GITHUB_TOKEN }}
          action: 'upload'
          app_location: 'website'
          skip_app_build: true

Conclusion

As you can see, there are several points to consider here. We have been able to deploy a Static Web App to Azure without having a secret stored in the GitHub repository.

Instead, we are using the OpenID Connect (OIDC) capabilities of GitHub Actions and Azure to establish the trust between the two, and authenticate to use the Azure CLI.

In the ideal world, we would be able to deploy directly to Azure Static Web Apps with the Azure/static-web-apps-deploy GitHub Action, using the built-in RBAC permissions for deployment.

Instead, we have to perform an additional ‘hop’ (i.e. pulling the token dynamically into the deployment), which introduces the potential security risk of leaking the deployment token if not masked correctly.

In my opinion, at this time - the default Azure Static Web Apps experience feels safer, as the masking works very well at the GitHub Action level. There is a risk of not getting the masking correctly configured and leaking a token (or a smaller risk of the token changing between those two steps, as outlined above). However, there is a trade-off from an operational perspective (e.g. remembering to update the token in the GitHub repository if you changed it on the Azure Static Web App).

Like all aspects, there are tradeoffs in these scenarios. However, this OpenID Connect scenario could work extremely well for those resources that can be managed based on the Azure CLI and built-in RBAC permissions. For example, uploading of my Podcast MP3 files to Azure Storage.

I’d love to know what you think! How are you planning on using OpenID Connect, GitHub Actions and the Azure/login GitHub Action to deploy securely to your Azure resources? Let me know in the comments below, and whether you’re already using this approach!

Related

Deploying Static Sites to Azure the cheap and performant way

Did you know that Static Sites can help you build performant sites that easily scale globally? Better yet, they can be incredibly cost-effective!

Talk

October 16, 2021
V001 - Weekly Technology Vlog #1 (Blog, Hugo, Azure, GitHub & Azure DevOps)

In this video, Chris sets off his weekly technology vlog updates talking about some of the things he worked on over his December break including OSS Contributions. He also talks through some updates from the month of December across Azure, GitHub and Azure DevOps.

Episode

January 4, 2021
Automate adding GitHub Issues to GitHub Projects (Beta) in a repository owned by a user

I recently wrote a blog post about using GitHub Actions to automatically add a GitHub Issue to a GitHub project (Beta) when the issue is opened. I received a question from my colleague and maintainer of the promitor and KEDA Open Source (OSS) Projects, Tom Kerkhove on doing the same with a user-owned GitHub repository, rather than organisation-owned.

Blog

February 10, 2022
